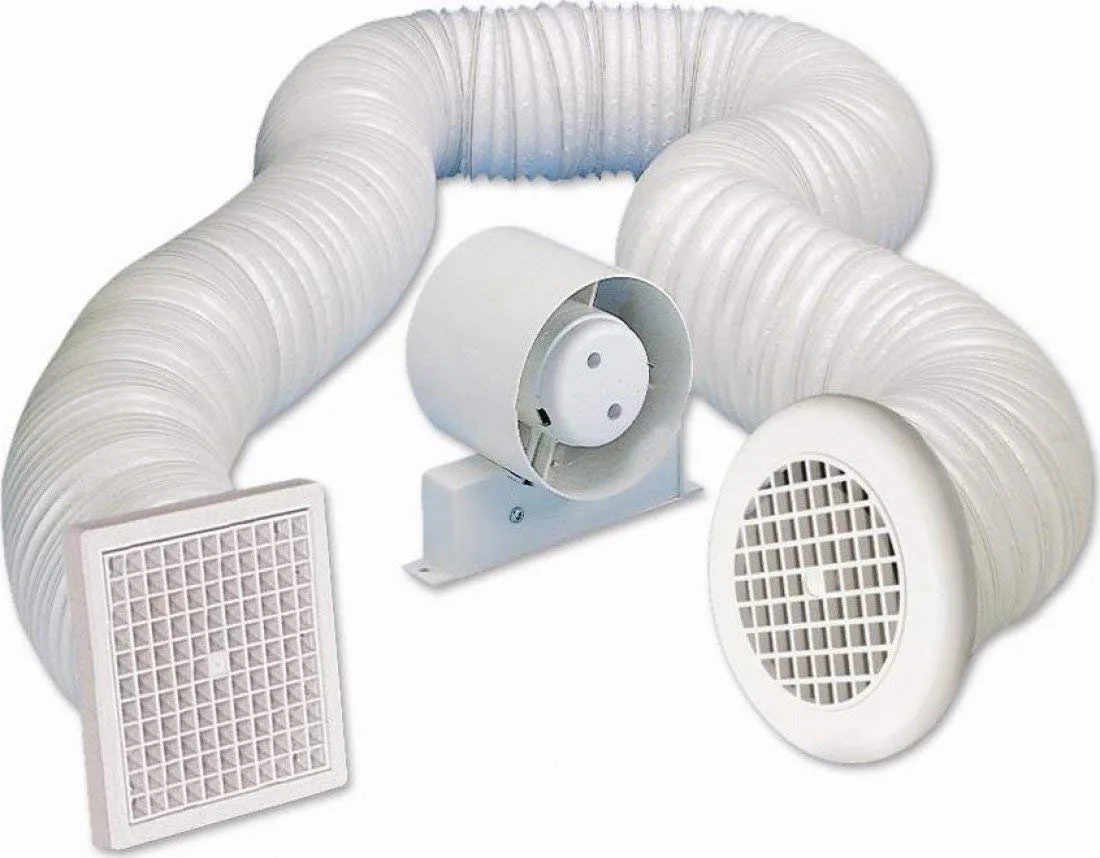

Model: 434446A ¯100mm, axial, inline, shower fan kit with electronic overrun timer adjustable from 5 to 30 minutes. The factory setting is 15 minutes. Kit Includes Fan, two grilles, fixings and 3m flexible PVC ducting Quiet operation Timer model (5-30 minutes) Technical Specification IP44 rated. CE marked in accordance with all the relevant EEC Harmonised Directives. Double insulated, class II motor fitted with Thermal Protection. Airflow Installed: 82m3/hr installed Airflow, fan only, free air: 108m3/hr Technical Data: Rated Voltage 220-240v-50Hz Rated Wattage 14W Noise Level 37dB(A) Grille Dimensions Height: 170mm Width: 170mm Length: 60mm Dimensions Height-100mm Width-100mm Depth-137mm

_Full Kit comprising of Inline Fan, 2 Grilles, 3 metres of Flexiduct and Fixings
_Airvent Brand (made at Vent Axia)
_Timer Model - Can be wired so Fan stays on when light switched off
_Requires: Premanent Live, Switched Live, Neutral
_Double Insulated: No Earth Required
